Specifications

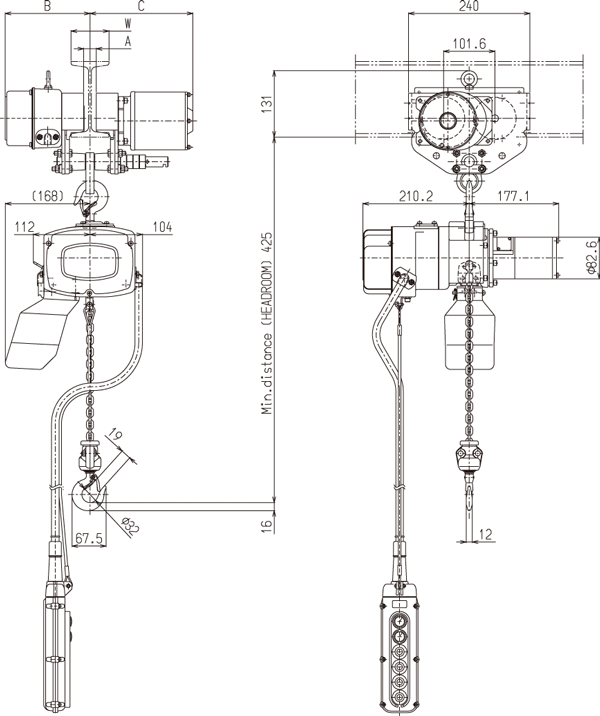

αSVM-006 / αHVM-006 Dimensions
Rail width W ( mm ) | A | B | C |
75 | 25 | 167.7 | 203.5 |
100 | 50 | 180.2 | 216 |
125 | 75 | 192.7 | 228.5 |
Note1 : The A, B, C dimensions change according to the width of the applicable rail.
αSVM-006 /αHVM-006 Specifications
Type | Variable - speed type | |
Model | For 100V - 115V | αSVM-006 |
For 200V - 230V | αHVM-006 | |
Capacity ( kg ) | 60 | |
Headroom ( mm ) * | 425 | |
Standard lift ( m ) | 3 | |
Motor output ( kW ) | 0.3 | |
Lifting speed ( m / min ) | 1 - 13 | |
Traverse motor output ( kW ) | 0.15 | |
Traversing speed ( m / min : 50 Hz / 60 Hz ) | 10 / 12 | |
Applicable traverse rail width ( mm ) | 75 ・ 100 ・ 125 | |
Minimum traverse turning radius ( mm ) | 900 | |
Minimum height of traverse rail ( mm ) | 100 | |
Net weight ( kg ) | 32.5 | |
1 ) See here for the specifications for small electric chain hoist.
2 ) *The headroom slightly differs according to the size of the applicable traverse rail.
3 ) The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4 ) The power cord of 0.5m extending from the trolley ( 3-core : 1 pc for earth ) is supplied.
2 ) *The headroom slightly differs according to the size of the applicable traverse rail.
3 ) The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4 ) The power cord of 0.5m extending from the trolley ( 3-core : 1 pc for earth ) is supplied.
Specifications and dimensions are subject to change without notice.
αSVM-01 / αHVM-01 Dimensions
Rail width W ( mm ) | A | B | C |
75 | 25 | 167.7 | 203.5 |
100 | 50 | 180.2 | 216 |
125 | 75 | 192.7 | 228.5 |
Note1 : The A, B, C dimensions change according to the width of the applicable rail.
αSVM-01 /αHVM-01 Specifications
Type | Variable - speed type | |
Model | For 100V - 115V | αSVM-01 |
For 200V - 230V | αHVM-01 | |
Capacity ( kg ) | 100 | |
Headroom ( mm ) * | 425 | |
Standard lift ( m ) | 3 | |
Motor output ( kW ) | 0.3 | |
Lifting speed ( m / min ) | 1 - 13 | |
Traverse motor output ( kW ) | 0.15 | |
Traversing speed ( m / min : 50 Hz / 60 Hz ) | 10 / 12 | |
Applicable traverse rail width ( mm ) | 75 ・ 100 ・ 125 | |
Minimum traverse turning radius ( mm ) | 900 | |
Minimum height of traverse rail ( mm ) | 100 | |
Net weight ( kg ) | 32.5 | |
1 ) See here for the specifications for small electric chain hoist.
2 ) *The headroom slightly differs according to the size of the applicable traverse rail.
3 ) The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4 ) The power cord of 0.5m extending from the trolley ( 3-core : 1 pc for earth ) is supplied.
2 ) *The headroom slightly differs according to the size of the applicable traverse rail.
3 ) The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4 ) The power cord of 0.5m extending from the trolley ( 3-core : 1 pc for earth ) is supplied.
Specifications and dimensions are subject to change without notice.

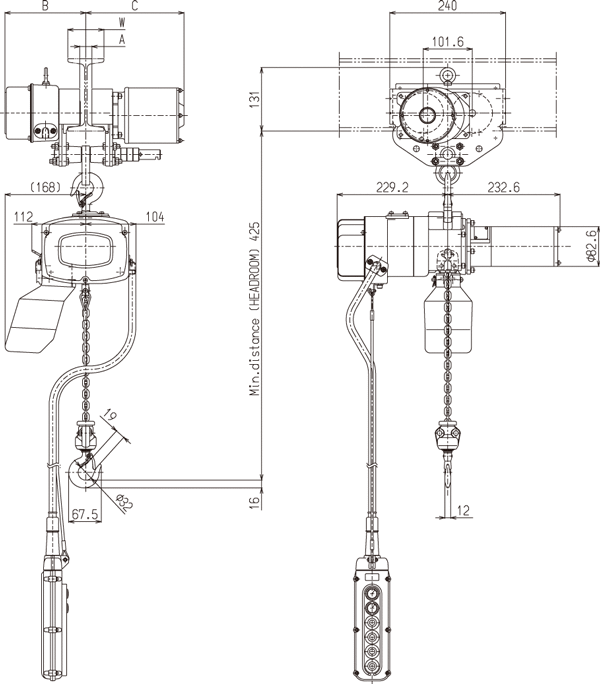

αSVM-016 / αHVM-016 Dimensions
Rail width W ( mm ) | A | B | C |
75 | 25 | 167.7 | 203.5 |
100 | 50 | 180.2 | 216 |
125 | 75 | 192.7 | 228.5 |
Note1 : The A, B, C dimensions change according to the width of the applicable rail.
αSVM-016 /αHVM-016 Specifications
Type | Variable - speed type | |
Model | For 100V - 115V | αSVM-016 |
For 200V - 230V | αHVM-016 | |
Capacity ( kg ) | 160 | |
Headroom ( mm ) * | 425 | |
Standard lift ( m ) | 3 | |
Motor output ( kW ) | 0.6 | |
Lifting speed ( m / min ) | 1 - 15 | |
Traverse motor output ( kW ) | 0.15 | |
Traversing speed ( m / min : 50 Hz / 60 Hz ) | 10 / 12 | |
Applicable traverse rail width ( mm ) | 75 ・ 100 ・ 125 | |
Minimum traverse turning radius ( mm ) | 900 | |
Minimum height of traverse rail ( mm ) | 100 | |
Net weight ( kg ) | 34.5 | |
1 ) See here for the specifications for small electric chain hoist.
2 ) *The headroom slightly differs according to the size of the applicable traverse rail.
3 ) The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4 ) The power cord of 0.5m extending from the trolley ( 3-core : 1 pc for earth ) is supplied.
2 ) *The headroom slightly differs according to the size of the applicable traverse rail.
3 ) The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4 ) The power cord of 0.5m extending from the trolley ( 3-core : 1 pc for earth ) is supplied.
Specifications and dimensions are subject to change without notice.
αSVM-025 / αHVM-025 Dimensions
Rail width W ( mm ) | A | B | C |
75 | 25 | 167.7 | 203.5 |
100 | 50 | 180.2 | 216 |
125 | 75 | 192.7 | 228.5 |
Note1 : The A, B, C dimensions change according to the width of the applicable rail.
αSVM-025 /αHVM-025 Specifications
Type | Variable - speed type | |
Model | For 100V - 115V | αSVM-025 |
For 200V - 230V | αHVM-025 | |
Capacity ( kg ) | 250 | |
Headroom ( mm ) * | 425 | |
Standard lift ( m ) | 3 | |
Motor output ( kW ) | 0.6 | |
Lifting speed ( m / min ) | 1 - 10 | |
Traverse motor output ( kW ) | 0.15 | |
Traversing speed ( m / min : 50 Hz / 60 Hz ) | 10 / 12 | |
Applicable traverse rail width ( mm ) | 75 ・ 100 ・ 125 | |
Minimum traverse turning radius ( mm ) | 900 | |
Minimum height of traverse rail ( mm ) | 100 | |
Net weight ( kg ) | 35 | |
1 ) See here for the specifications for small electric chain hoist.
2 ) *The headroom slightly differs according to the size of the applicable traverse rail.
3 ) The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4 ) The power cord of 0.5m extending from the trolley ( 3-core : 1 pc for earth ) is supplied.
2 ) *The headroom slightly differs according to the size of the applicable traverse rail.
3 ) The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4 ) The power cord of 0.5m extending from the trolley ( 3-core : 1 pc for earth ) is supplied.
Specifications and dimensions are subject to change without notice.

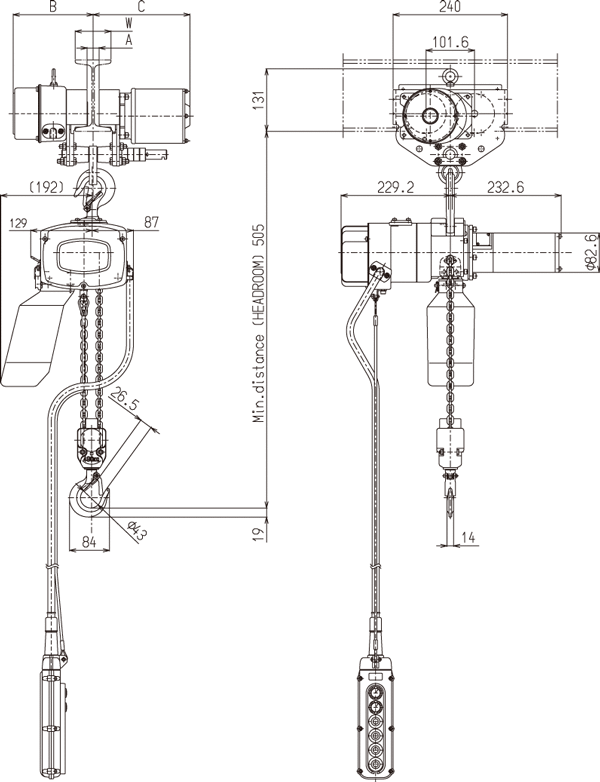

αSVM-050 / αHVM-050 Dimensions
Rail width W ( mm ) | A | B | C |
75 | 25 | 167.7 | 203.5 |
100 | 50 | 180.2 | 216 |
125 | 75 | 192.7 | 228.5 |
Note1 : The A, B, C dimensions change according to the width of the applicable rail.
αSVM-050 /αHVM-050 Specifications
Type | Variable - speed type | |
Model | For 100V - 115V | αSVM-050 |
For 200V - 230V | αHVM-050 | |
Capacity ( kg ) | 500 | |
Headroom ( mm ) * | 505 | |
Standard lift ( m ) | 3 | |
Motor output ( kW ) | 0.6 | |
Lifting speed ( m / min ) | 0.5 - 5 | |
Traverse motor output ( kW ) | 0.15 | |
Traversing speed ( m / min : 50 Hz / 60 Hz ) | 10 / 12 | |
Applicable traverse rail width ( mm ) | 75 ・ 100 ・ 125 | |
Minimum traverse turning radius ( mm ) | 900 | |
Minimum height of traverse rail ( mm ) | 100 | |
Net weight ( kg ) | 37.5 | |
1 ) See here for the specifications for small electric chain hoist.
2 ) *The headroom slightly differs according to the size of the applicable traverse rail.
3 ) The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4 ) The power cord of 0.5m extending from the trolley ( 3-core : 1 pc for earth ) is supplied.
2 ) *The headroom slightly differs according to the size of the applicable traverse rail.
3 ) The single-phase traverse motor has E-class insulation, and the short time rating is 15 min.
4 ) The power cord of 0.5m extending from the trolley ( 3-core : 1 pc for earth ) is supplied.
Specifications and dimensions are subject to change without notice.
