Specifications
αSV-006 / αHV-006 Dimensions
αSV-006 / αHV-006 Specifications
Type | Variable - speed type | |
Model | For 100V - 115V * | αSV-006 |
For 200V - 230V * | αHV-006 | |
Capacity ( kg ) | 60 | |
Motor output ( W ) | 300 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 6 [ 4 ] | |
Lifting speed ( m / min ) | 1 - 13 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 15 | |
*Specify the voltage you require.
1 ) A power source cable ( 2m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
αSV-01 / αHV-01 Dimensions
αSV-01 / αHV-01 Specifications
Type | Variable - speed type | |
Model | For 100V - 115V * | αSV-01 |
For 200V - 230V * | αHV-01 | |
Capacity ( kg ) | 100 | |
Motor output ( W ) | 300 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 8 [ 5 ] | |
Lifting speed ( m / min ) | 1 - 13 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 15 | |
*Specify the voltage you require.
1 ) A power source cable ( 2m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
αSV-016 / αHV-016 Dimensions
αSV-016 / αHV-016 Specifications
Type | Variable - speed type | |
Model | For 100V - 115V * | αSV-016 |
For 200V - 230V * | αHV-016 | |
Capacity ( kg ) | 160 | |
Motor output ( W ) | 600 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 14 [ 7 ] | |
Lifting speed ( m / min ) | 1 - 15 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 17 | |
*Specify the voltage you require.
1 ) A power source cable ( 2m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
αSV-025 / αHV-025 Dimensions
αSV-025 / αHV-025 Specifications
Type | Variable - speed type | |
Model | For 100V - 115V * | αSV-025 |
For 200V - 230V * | αHV-025 | |
Capacity ( kg ) | 250 | |
Motor output ( W ) | 600 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 14 [ 7 ] | |
Lifting speed ( m / min ) | 1 - 10 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 17.5 | |
*Specify the voltage you require.
1 ) A power source cable ( 2m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.

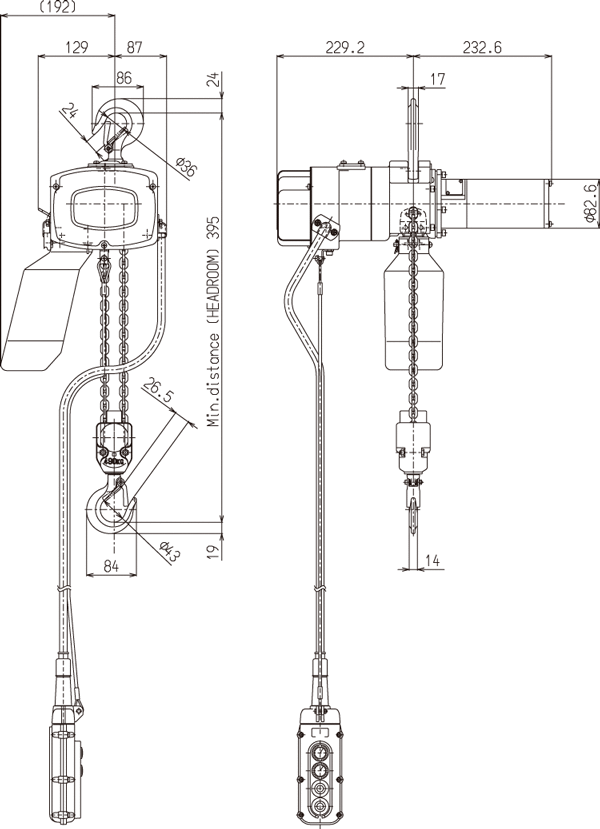

αSV-05 / αHV-05 Dimensions
αSV-05 / αHV-05 Specifications
Type | Variable - speed type | |
Model | For 100V - 115V * | αSV-05 |
For 200V - 230V * | αHV-05 | |
Capacity ( kg ) | 500 | |
Motor output ( W ) | 600 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 14 [ 7 ] | |
Lifting speed ( m / min ) | 0.5 - 5 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 395 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 20 | |
*Specify the voltage you require.
1 ) A power source cable ( 2m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
