Specifications

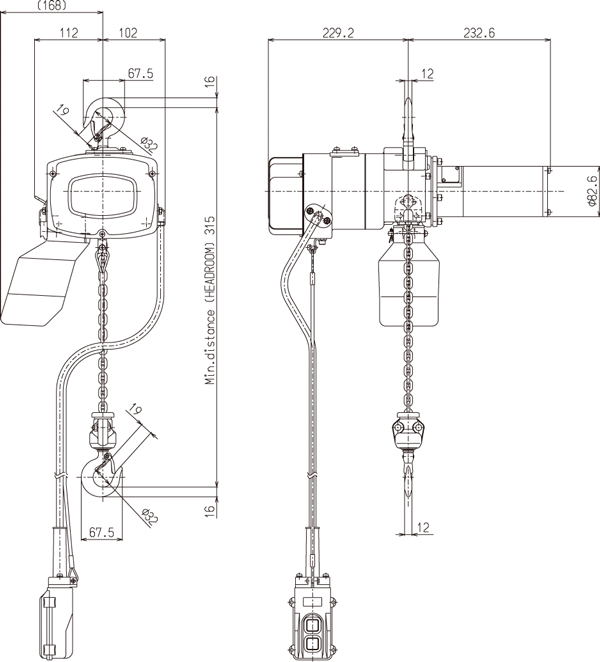

αS-006 / αH-006 Dimensions
αS-006 / αH-006 Specifications
Type | Single-speed type | |
Model | For 100V - 115V* | αS-006 |
For 200V - 230V* | αH-006 | |
Capacity ( kg ) | 60 | |
Motor output ( W ) | 300 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 6 [ 4 ] | |
Lifting speed ( m / min ) | 13 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 15 | |
*Specify the voltage you require.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.

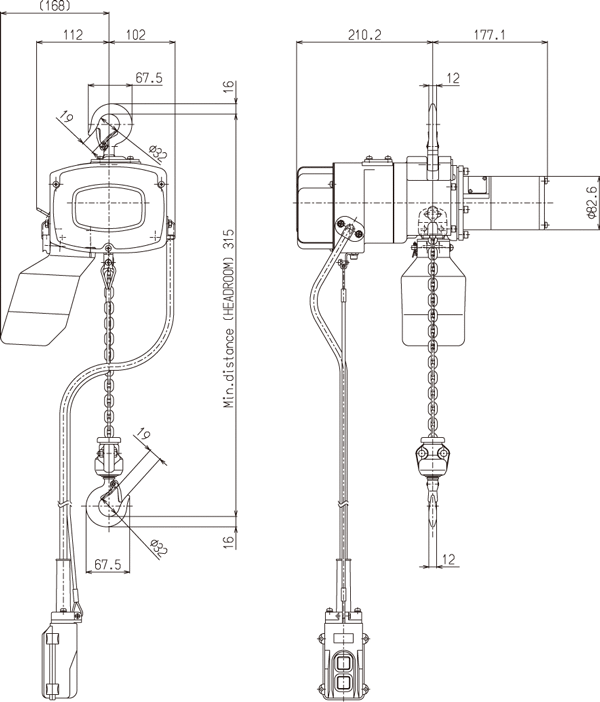

αS-01 / αH-01 Dimensions
αS-01 / αH-01 Specifications
Type | Single-speed type | |
Model | For 100V - 115V* | αS-01 |
For 200V - 230V* | αH-01 | |
Capacity ( kg ) | 100 | |
Motor output ( W ) | 300 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 8 [ 5 ] | |
Lifting speed ( m / min ) | 13 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 15 | |
*Specify the voltage you require.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
αS-016 / αH-016 Dimensions
αS-016 / αH-016 Specifications
Type | Single-speed type | |
Model | For 100V - 115V* | αS-016 |
For 200V - 230V* | αH-016 | |
Capacity ( kg ) | 160 | |
Motor output ( W ) | 600 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 14 [ 7 ] | |
Lifting speed ( m / min ) | 15 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 17 | |
*Specify the voltage you require.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
αS-025 / αH-025 Dimensions
αS-025 / αH-025 Specifications
Type | Single-speed type | |
Model | For 100V - 115V* | αS-025 |
For 200V - 230V* | αH-025 | |
Capacity ( kg ) | 250 | |
Motor output ( W ) | 600 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 14 [ 7 ] | |
Lifting speed ( m / min ) | 10 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 17 | |
*Specify the voltage you require.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.

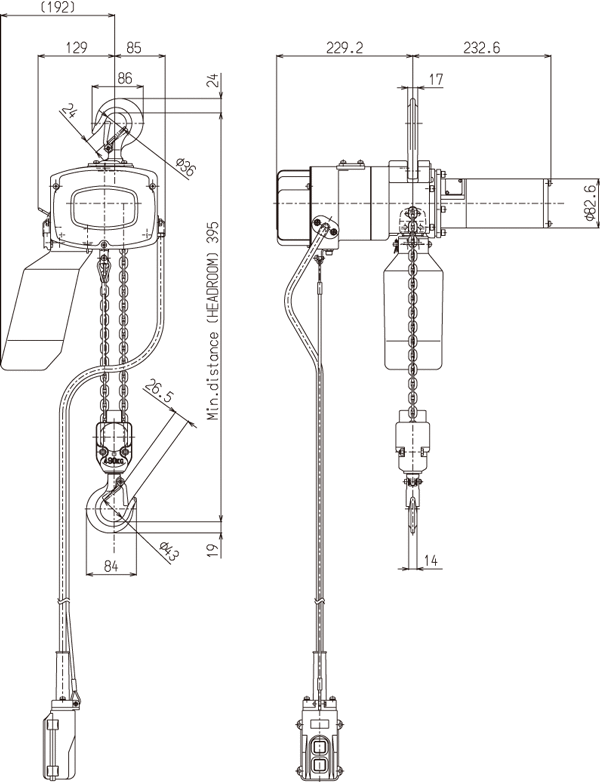

αS-05 / αH-05 Dimensions
αS-05 / αH-05 Specifications
Type | Single-speed type | |
Model | For 100V - 115V* | αS-05 |
For 200V - 230V* | αH-05 | |
Capacity ( kg ) | 500 | |
Motor output ( W ) | 600 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 14 [ 7 ] | |
Lifting speed ( m / min ) | 5 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 395 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 19.5 | |
*Specify the voltage you require.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
αSB-006 / αHB-006 Dimensions
αSB-006 / αHB-006 Specifications
Type | Dual-speed type | |
Model | For 100V - 115V* | αSB-006 |
For 200V - 230V* | αHB-006 | |
Capacity ( kg ) | 60 | |
Motor output ( W ) | 300 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 6 [ 4 ] | |
Lifting speed ( m / min ) | Low - speed 5 High - speed 13 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 15 | |
*Specify the voltage you require.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
αSB-01 / αHB-01 Dimensions
αSB-01 / αHB-01 Specifications
Type | Dual-speed type | |
Model | For 100V - 115V* | αSB-01 |
For 200V - 230V* | αHB-01 | |
Capacity ( kg ) | 100 | |
Motor output ( W ) | 300 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 8 [ 5 ] | |
Lifting speed ( m / min ) | Low - speed 4 High - speed 13 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 15 | |
*Specify the voltage you require.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
αSB-016 / αHB-016 Dimensions
αSB-016 / αHB-016 Specifications
Type | Dual-speed type | |
Model | For 100V - 115V* | αSB-016 |
For 200V - 230V* | αHB-016 | |
Capacity ( kg ) | 160 | |
Motor output ( W ) | 600 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 14 [ 7 ] | |
Lifting speed ( m / min ) | Low - speed 5 High - speed 15 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 17 | |
*Specify the voltage you require.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
αSB-025 / αHB-025 Dimensions
αSB-025 / αHB-025 Specifications
Type | Dual-speed type | |
Model | For 100V - 115V* | αSB-025 |
For 200V - 230V* | αHB-025 | |
Capacity ( kg ) | 250 | |
Motor output ( W ) | 600 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 14 [ 7 ] | |
Lifting speed ( m / min ) | Low - speed 4 High - speed 10 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 315 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 17 | |
*Specify the voltage you require.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
αSB-05 / αHB-05 Dimensions
αSB-05 / αHB-05 Specifications
Type | Dual-speed type | |
Model | For 100V - 115V* | αSB-05 |
For 200V - 230V* | αHB-05 | |
Capacity ( kg ) | 500 | |
Motor output ( W ) | 600 | |
Short-time rating ( min ) | 25 | |
Repetition ratings | Load time rate ( % ED ) | 30 |
Max. starting frequency ( times / h ) | 180 | |
Rated current ( A ) | 14 [ 7 ] | |
Lifting speed ( m / min ) | Low - speed 2 High - speed 5 | |
Standard lift ( m ) | 3 | |
Headroom ( mm ) | 395 | |
Push-button cord length ( m ) | 3 | |
Load chain, diameter x pitch ( mm ) | 4 X 12 | |
Net weight ( kg ) | 20 | |
*Specify the voltage you require.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
1 ) A power source cable ( 2 m㎡ x 3 Core wires ) 5m is included for single phase.
2 ) Figure in [ ] shows that of αH type.
3 ) Power supply voltage for operating the push-button switch is 100V ( or 200V ) single phase.
4 ) 500kg type is also available to supply the equipment for 490kg.
Specifications and dimensions are subject to change without notice.
